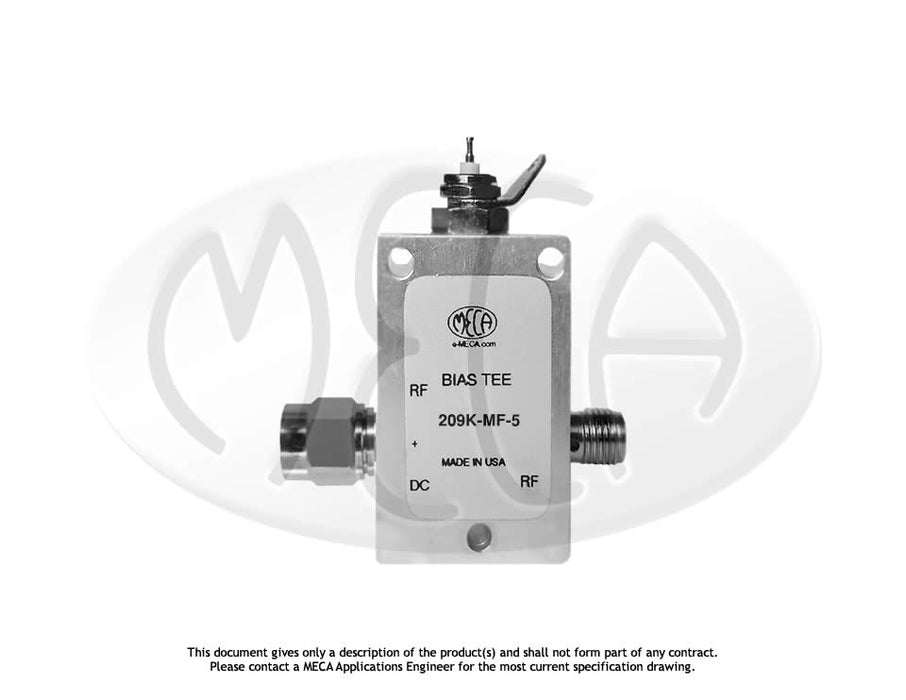

209K-MF-5, 2.9mm, 0.100-40.0 GHz
RoHS compliant, Bias Tees cover wireless band applications from 0.100 – 40.0 GHz. Our unique modular design offers maximum flexibility regardless of connector configuration at any port! Available in 2.92mm max DC levels of 25 VDC/150 mA making them ideal for remote powering of bi-directional amplifiers (BDAs), repeaters and tower top amplifiers (TTAs) by BTS control modules. Made in USA.
