H3N-1.950, N-Female, 1.710-1.990 GHz
Original price $396.20 - Original price $396.20
$396.20 - $396.20
Current price $396.20

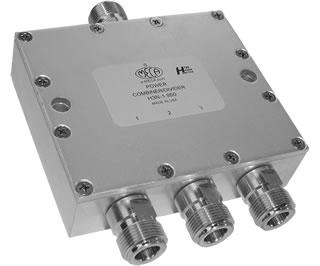

MECA's 3-way, H3N-1.950, N-Female power divider/combiner with an average power rating of 120 watts and frequency of 1.710-1.990 GHz.
1. MECA's power combiner series is designed to provide continuous full-rated power when a method of heat transfer which keeps the case temperature at or below +85°C (i.e. additional heat sinking and/or cooling fan is utilized).
2. Operating temperature from -55°C to +85°C.
3. Port S power rating is maximum input as power divider with load VSWR of 2.0:1 or better.
4. All output/power combiner ports are in-phase (0° difference).
5. 50 ohm nominal impedance standard.
6. Maximum case termperature 85°C
