605-20-1F18, 2 Watts, Hz-18.0 GHz

Description:
MECA’s 605-20-1F18 N-Type (Male/Female) fixed attenuator features a frequency range of Hz-18.0 GHz, an average power rating of 2 watts and is available from STOCK in 3, 6, 10, 20, 30, 40, 50 & 60 dB. ROHS Compliant.
To order, please specify an attenuation value in place of dB. EXAMPLE: 605-20-1 for 20 dB.

Specifying Tip:
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.

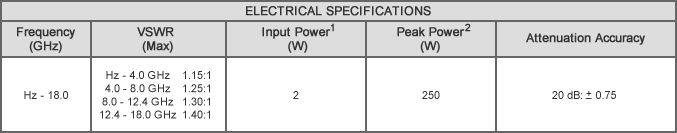

Notes:
1. Average power at +25°C derated linearly to 1.0 Watt at +85°C
2. 5 µSec pulse, .05% duty cycle.
3. Impedance (Nominal): 50 Ohms.
