615-51-1, 2.5 Watts, Hz-2.5 GHz
MECA’s 615-51-1 N-Type (Male/Female) fixed attenuator features a frequency range of Hz-2.5 GHz, an average power rating of 2.5 watts and is available from STOCK in 30 - 95 dB. ROHS Compliant.
To order, please specify an attenuation value in place of dB. EXAMPLE: 615-30-1 for 30 dB.
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.

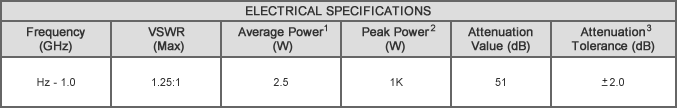

1. Average power at 25°C derates linearly to 1.0 Watt @ +85°C
2. 1Kw 5 µSec pulse, 0.5% duty cycle
3. Includes all variations (i.e. Frequency Sensitivity, Temperature, etc)
4. Impedance (Nominal): 50 Ohms.
