802-3-29.000, 2.92mm, 18.000-40.000 GHz

Original price - Original price
Original price
-
Current price
SKU 802-3-29.000

Description:

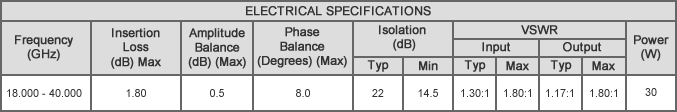

MECA expanded offering of 5G Millimeter-Wave products. Featuring 2-Way Power Dividers covering 18-40 GHz with 2.92 mm interfaces . Specifications of 1.3:1Typ/1.8:Max VSWR, 22 Typ/14.5 dB Min Isolation, 1.25 dBTyp / 1.80 Max Insertion loss and 0.3 Typ / .5 dB Max Amplitude Balance. Also available are Attenuators, Terminations, Bias Tee’s, DC blocks and adapters. Additionally octave & mulit-octave models covering up to 50 GHz built by J-Standard certified Assemblers & Technicians.

Notes:
1. 50 ohm nominal impedance standard.
2. Operating temperature from -55°C to +85°C.
3. See application note MAP-801
