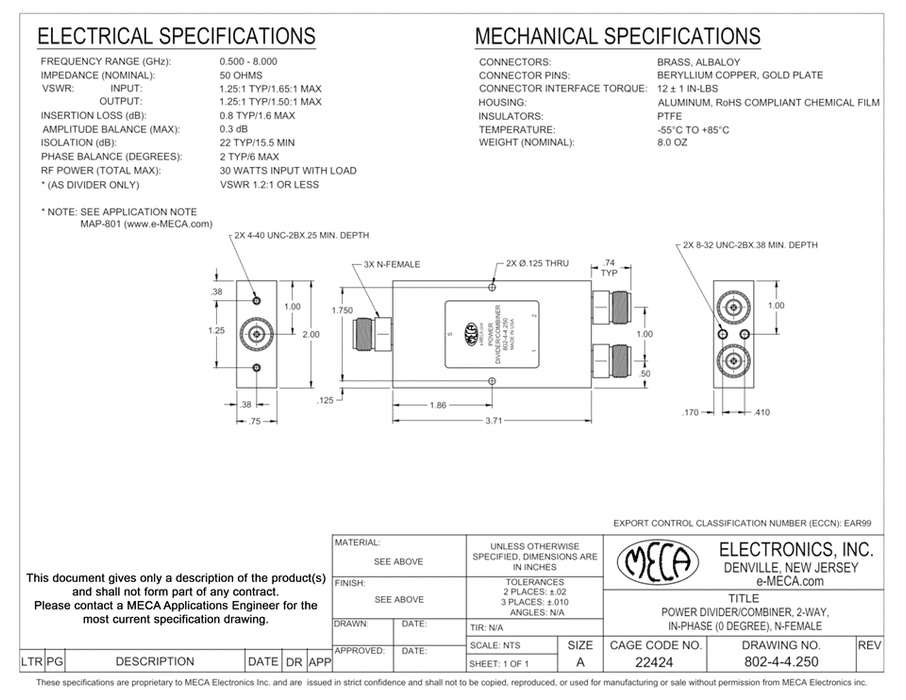

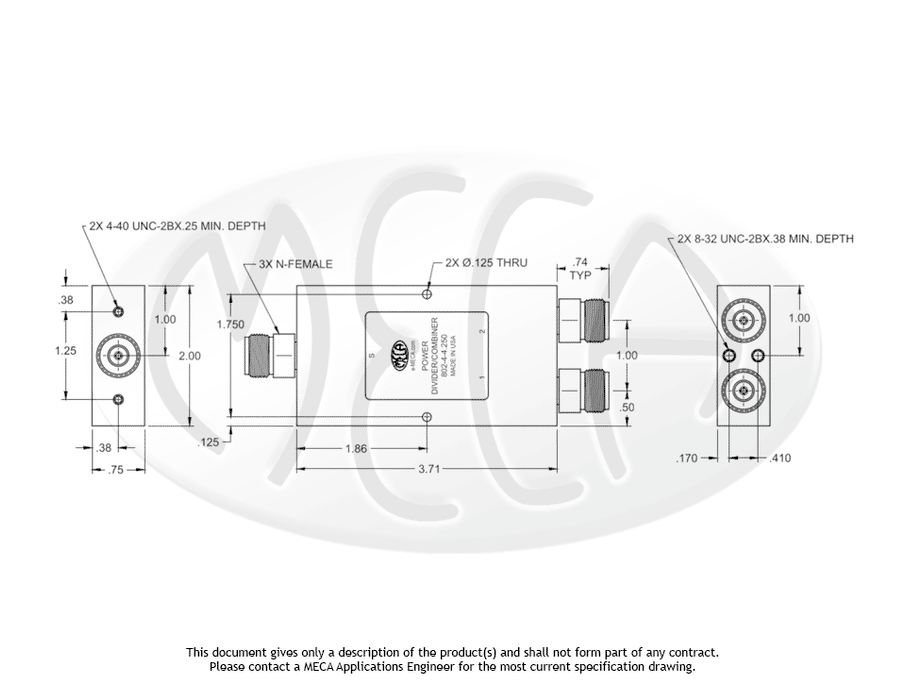

802-4-4.250, N-Female, 0.500-8.000 GHz

Description:
MECA is pleased to announce its latest addition to our extensive line of Broad Band Power Dividers with a 2-Way (802-4-4.250); broad band model covering UHF through Wi-Fi 6E bands.  Also available in; 4 & 8-Way, 30W Wilkinson Power Dividers, optimized for excellent performance with industry leading specifications from 500 MHz – 8.00 GHz, offering good broadband performance yet with phase and amplitude balance typically only seen in narrower/octave band models.  Operating from -55C to +85C.  The broad band nature of these models eliminates the need to increase the component count in various systems when migrating to higher frequency platforms required to support 5G & Wi-Fi6e applications.  Made in the USA and carries MECA’s industry leading 36 month manufacturing warranty.

Notes:
1. Insertion loss above 3.01 dB theoretical 2-way power divider split.
2. All units rated for maximum input power as a divider or balanced combiner with load
    VSWR of 1.20:1 or better. To calculate the combining rated power the following formula is used:
    (rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining.
3. All output/power combiner ports are in-phase (0° difference).
4. 50 ohm nominal impedance standard.
5. Operating temperature from -55°C to +85°C.
6. See application note MAP-801
