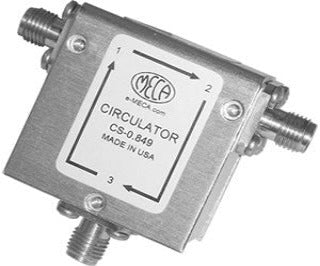

CS-0.849, 300 Watts, SMA-Female 0.698-1.000 GHz

Description:
RF circulator is a three-port passive device used to control the direction of signal flow in a circuit. MECA offers the CS-0.849 circulator with SMA-Female connectors with average power rating of 300 watts, and a frequency range of 0.698 - 1.000 GHz is readily available and can ship from STOCK to 4 weeks after receipt of your order. IP 67 compliant circulators available.

Notes:
1. Circulator power rated into a load mismatch of 1.05:1 all phase angles.
2. Additional frequency ranges available, please consult with factory for specific ranges.
3. Heat sink temperature must not exceed the maximum operating temperature specified.
4. 50 ohms nominal impedance is standard.
