490-1-M02, N-Male, 100 Watts, Hz-8.500 GHz
Original price
$999.00
-
Original price
$999.00
Original price
$999.00
$999.00
-
$999.00
Current price
$999.00
SKU 490-1-M02
Description:

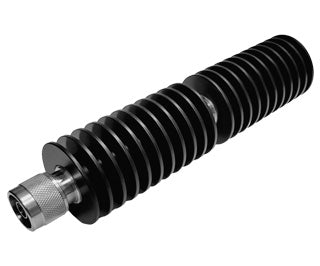

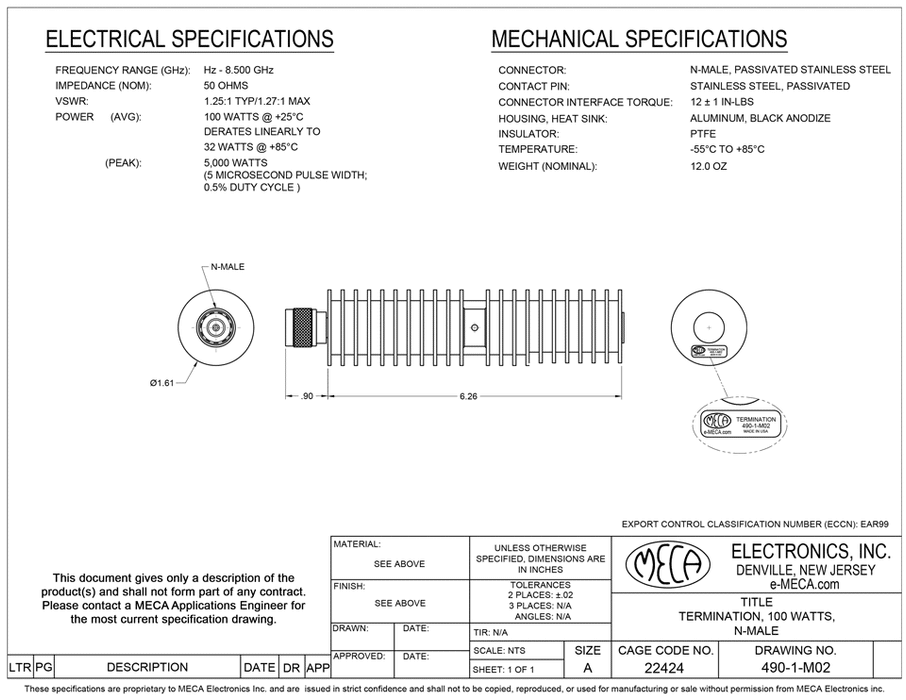

MECA’s 490-1-M02 N-Male termination features a frequency range of Hz-8.500 GHz with an average power rating of 100 watts (5000 watts peak).
Notes:
1. Average power @ +25°C derates linearly to 32 Watts @ +85°C
2. 5 µSec pulse width, 0.5% duty cycle.
3. 50 ohms nominal impedance is standard.
