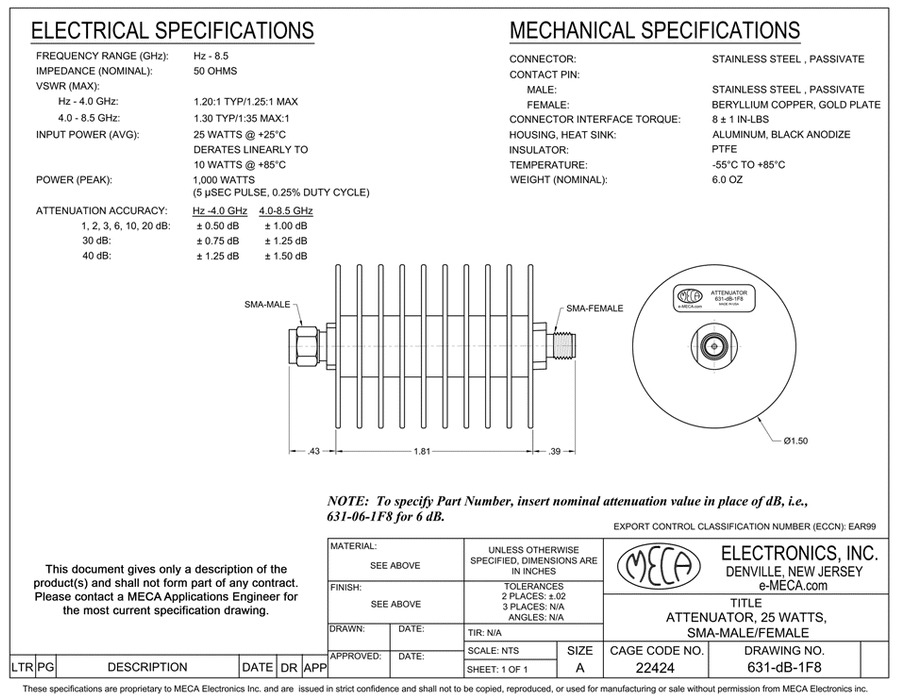

631-40-1F8, 25 Watts, Hz-8.5 GHz

Description:

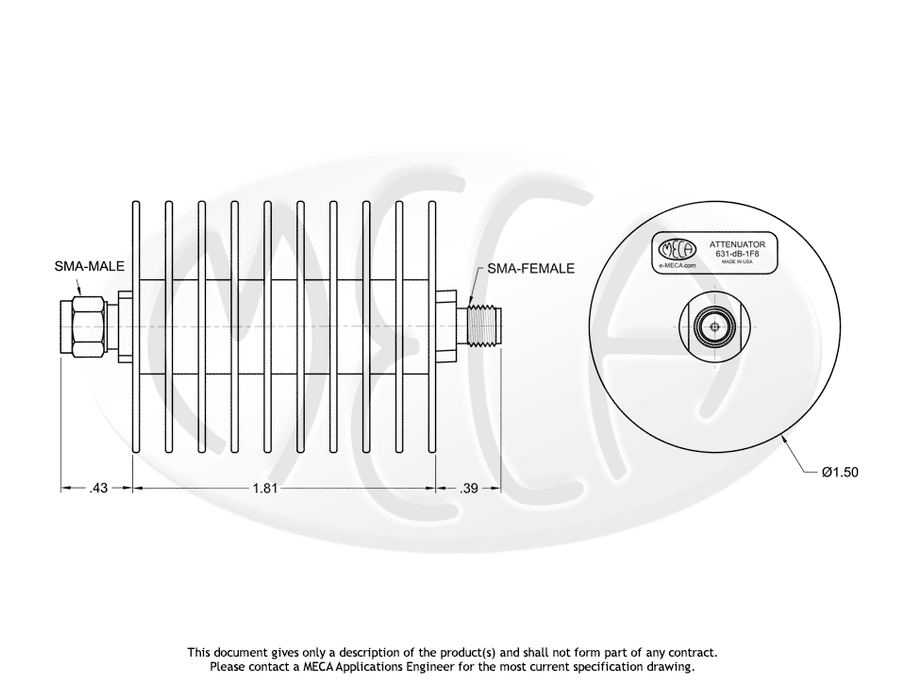

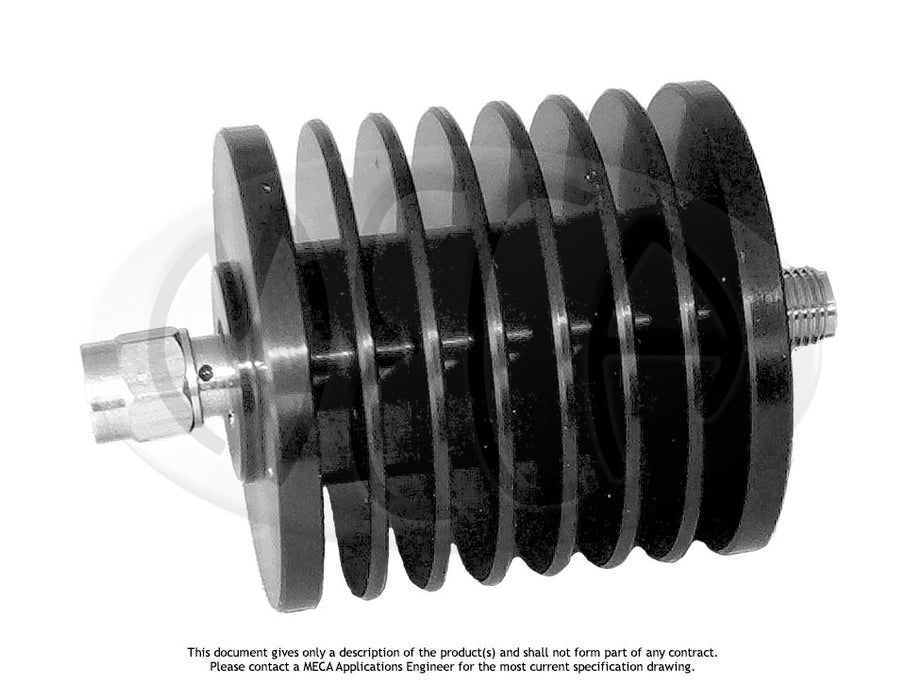

MECA’s 631-40-1F8 SMA (Male/Female) fixed attenuator features a frequency range of Hz-8.5 GHz, an average power rating of 25 watts and is available from STOCK in 1, 2, 3, 6, 10, 20, 30 & 40 dB values. ROHS Compliant. To order, please specify an attenuation value in place of dB. EXAMPLE: 631-40-1F8 for 40 dB.

Specifying Tip:
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.

Notes:
1. Average power at @ +25°C derates linearly to 10 Watts at @ +85°C
2. Impedance (Nominal): 50 Ohms.
