665-00-1H, 2 Watts, Hz-18.0 GHz

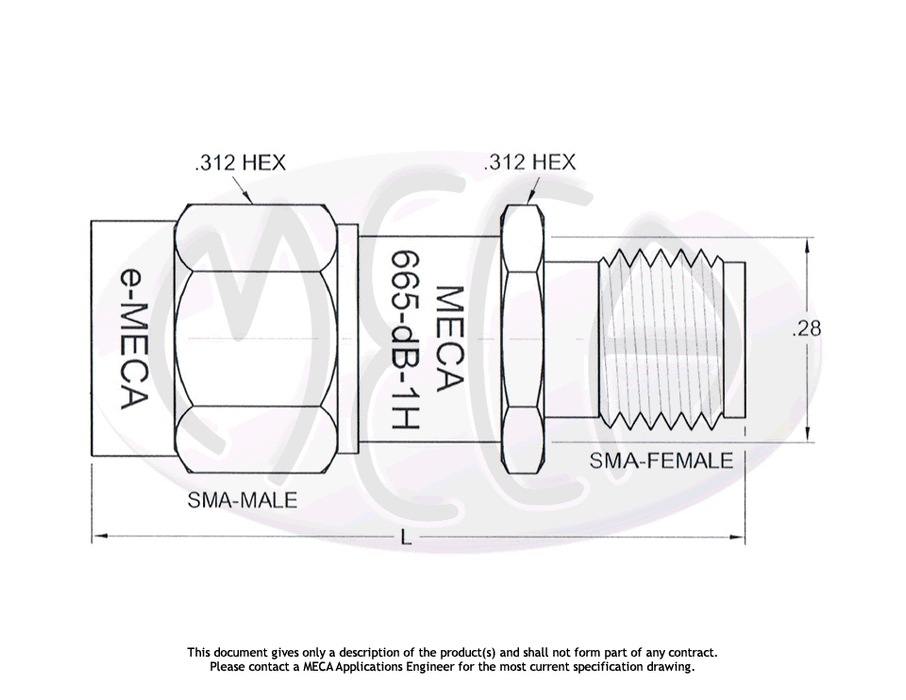

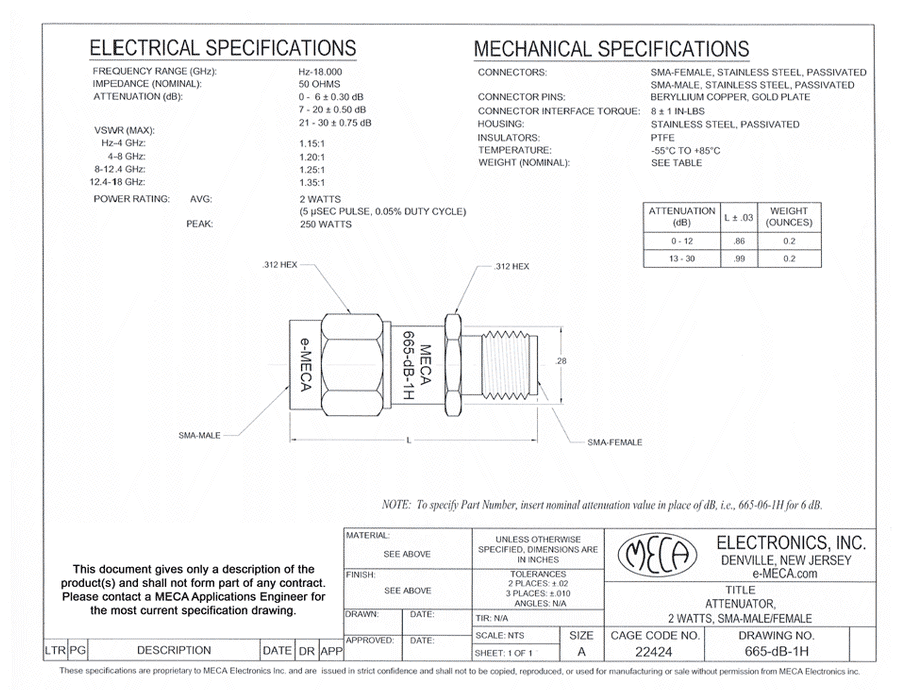

MECA’s 665-00-1H SMA (Male/Female) fixed attenuator features a frequency range of Hz-18.0 GHz, an average power rating of 2 watts and is available from STOCK in 0-10, 20 & 30dB values. ROHS Compliant. To order, please specify an attenuation value in place of dB. EXAMPLE: 665-10-1H for 10 dB.
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.
1. 5 µSec pulse, 0.05% duty cycle.
2. Impedance (Nominal): 50 Ohms.
