722S-40-1.950, 100 Watts, 1.700-2.600 GHz

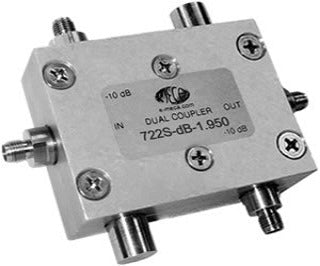

MECA’s 722S-40-1.950 SMA directional coupler is high power capable with extremely low insertion loss, a frequency range of 1.700-2.600 GHz, and is ideal for your systems applications where precise monitoring, external leveling, signal mixing or swept transmission and reflection measurements are desired. Coupled ports are DC isolated and will only pass RF. Weather resistant models (IP61) also available.
Nominal coupling values of 10, 20, 30 and 40 dB are available.
1. Excluding theoretical insertion loss due to coupling (see table).
2. All units have a peak power rating of 3 kW.
3. 50 ohm nominal impedance standard.
4. Operating temperature is from -65°C to +150°C.
5. Mounting holes 0.156” diameter thru in 2 places.
