804-2-9.700, SMA-Female, 7.0-12.4 GHz
Original price $999.00 - Original price $999.00
$999.00 - $999.00
Current price $999.00

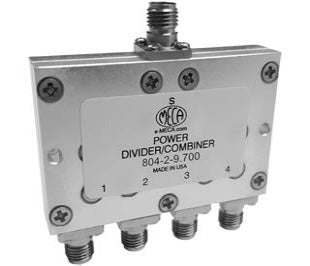

MECA's 4-way, 804-2-9.700, SMA-Female power divider/combiner with an average power rating of 30 watts and frequency of 7.0-12.4 GHz.
1. Insertion loss above 6.02 dB theoretical 4-way power divider split.
2. All units rated for maximum input power as a divider or balanced combiner with load
VSWR of 1.20:1 or better. To calculate the combining rated power the following formula is used:
(rated input power of divider * 5%) / "N" # of input channels = max input at each port for combining.
3. All output/power combiner ports are in-phase (0° difference).
4. 50 ohm nominal impedance standard.
5. Operating temperature from -55°C to +85°C.
6. See application note MAP-801
