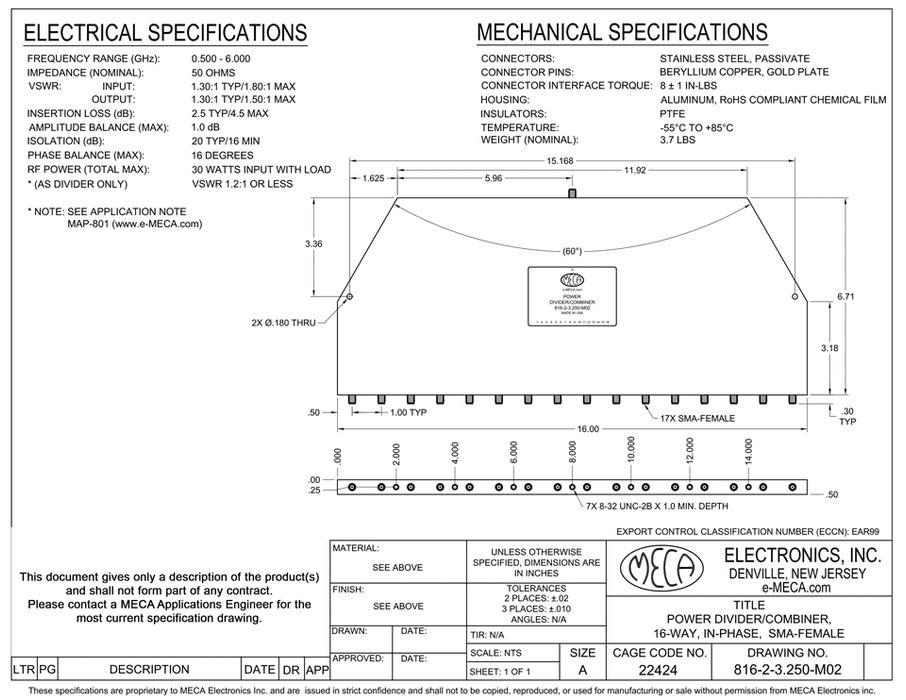

816-2-3.250-M02, SMA-Female, 0.5-6.0 GHz

Description:
MECA's 16-way, 816-2-3.250-M02, SMA-Female power divider/combiner with an average power rating of 30 watts and frequency of 0.500-6.000 GHz.

Notes:
1. Insertion loss above 12.04 dB theoretical 16-way power divider split.
2. 50 ohm nominal impedance standard.
3. Operating temperature from -55°C to +85°C.
4. See application note MAP-801
