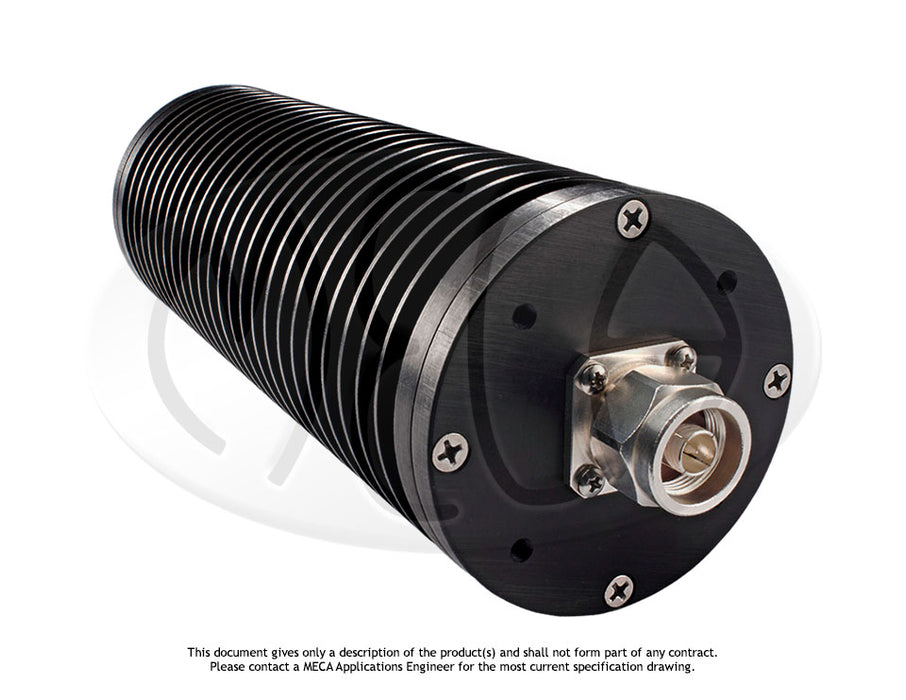

LPT250-NM-M01, N-Male, 250 Watts, 0.380-6.000 GHz
Original price
$999.00
-
Original price
$999.00
Original price
$999.00
$999.00
-
$999.00
Current price
$999.00
SKU LPT250-NM-M01

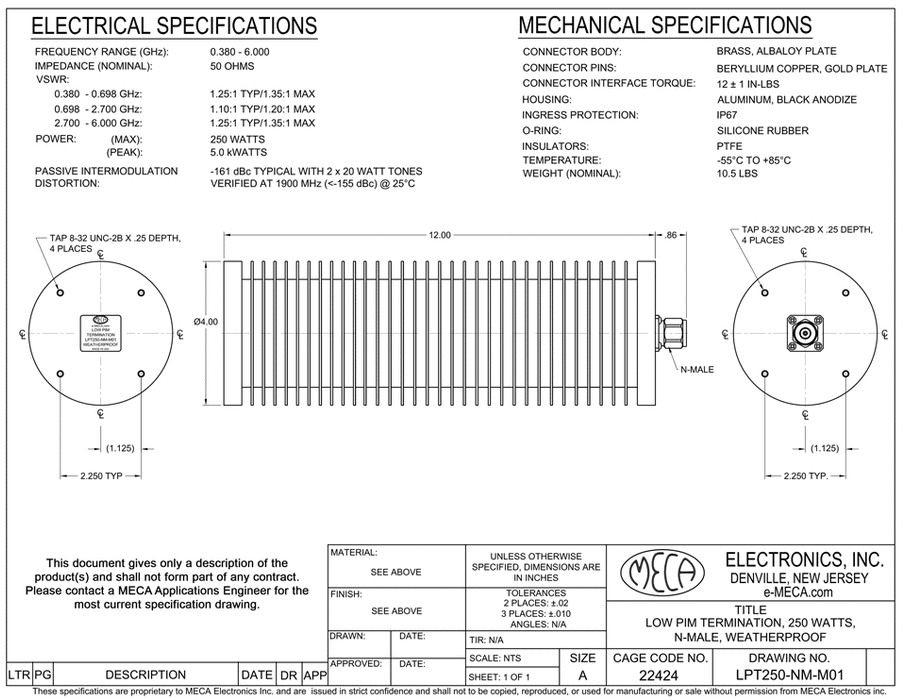

Description:
MECA Electronics is pleased to announce its latest low PIM, N-Male termination/load with industry leading -161 dBc (typical) passive intermodulation! The LPT250-NM-M01 termination covers the 0.380 – 6.000 GHz frequency band and is deal for IDAS / ODAS, In-Building.
Notes:
1. Passive Intermodulation Distortion:
-161 dBc typical with 2 X 20, watt tones verified at 1900 MHz (<-155 dBc) @ 25ºC.
2. 50 ohms nominal impedance is standard
3. Operating temperature from -55°C to +85°C.
